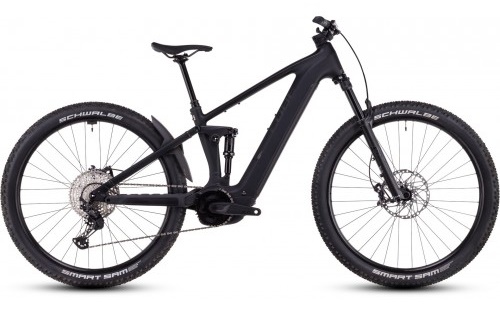

Cube Stereo Hybrid ONE22 SLX 800 blackline - 2025

Τιμή με επιδότηση: 3599,00€

Όφελος Κινούμαι Ηλεκτρικά: 800€

weight 26,2 kg
headset ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
shock hardware Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
Maximum rider weight 125 kg
frame Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
size Size Split: 27.5: S // 29: M L XL
Suspension fork Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm
drive unit Bosch Drive Unit Performance Line CX, Smart System
Remote Bosch Purion 200 with Integrated Display
battery Bosch PowerTube 800wh
charger Bosch 2A
shock Fox Float Rhythm RC, 185x52,5mm, Open/Firm Mode, Trunnion Mount
brake system Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
rear derailleur Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
shifters Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
crankset ACID MTB Hybrid Pro, 38T
cassette Shimano Deore CS-M6100, 10-51T
chain KMC e12
chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Stem CUBE Performance Stem E-MTB 35, FPI-Link
handlebar CUBE Rise Trail Bar 35
grips ACID Hybrid Perform
rims CUBE EX30, 32H, Disc, Tubeless Ready
front hub CUBE Engineered By Newmen, 15mm, Boost, Centerlock
rear hub CUBE Engineered By Newmen, 12mm, Boost, Centerlock
tyres Schwalbe Smart Sam, Performance, 2.6
saddle ACID Venec EMTB Plus 145
seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
pedals ACID PP MTB
colour blackline
Structural Weight 160 kg

Geometry

	S	M	L	XL
Seat tube	370	405	420	480
Top Tube Horizontal	570	600	630	660
Seat angle	76°	76°	76°	76°
Head tube angle	66.5°	66.5°	66.5°	66.5°
Chainstays	455	488	488	488
Head tube	163	132	142	157
Wheelbase	1186	1240	1271	1303
BB-Height to Hub	-23	-43	-43	-43
Protrusion height - 80mm	764	786	784	794
Reach	417	444	471	496
Stack	638	647	656	670

Ergonomics

	S	M	L	XL
Length seat post	371	429	472	472
Diameter seatpost	31.6	31.6	31.6	31.6
Angle stem	12°	12°	12°	12°
Crank length	170	170	170	170
Diameter tire maximum	722	760	760	760
Width tire maximum	67	67	67	67
Stem length	50	50	50	50
Handlebar width	760	760	760	760
Stroke seatpost	120	150	170	170
Rear suspension travel	120	120	120	120
